Premium hydraulic hose fittings for high-pressure fluid power systems. Manufactured to strict international standards (SAE, DIN, ISO) for leak-free connections.
Hose fittings are critical components that connect hydraulic, industrial, and fluid-transfer hoses to systems, pumps, valves, and equipment. This guide covers types, materials, standards, industrial applications, and selection criteria to help you specify the right fitting for your application.
A hose fitting (also called a hose end fitting, ferrule, or hose coupling) is a mechanical component designed to create a secure, leak-free connection between a flexible hose and a hydraulic, pneumatic, fuel, or fluid-transfer system. Unlike rigid pipe fittings, hose fittings must grip the hose via a crimping or clamping mechanism to withstand vibration, pulsating pressure, and thermal cycling.
DA Fluid supplies OEM-grade hose fittings compatible with international standards including DIN, JIC, SAE, BSP, NPT, and ORFS, plus metric configurations. Materials: carbon steel, stainless steel 304/316, and brass. Finishes: zinc-plated, nickel-plated, and hot-dip galvanized.
Our portfolio covers the main families of high-performance hose fittings:
Ferrules and hose ends crimped with a crimping machine. Maximum pressure and vibration-fatigue resistance. Ideal for high-pressure hydraulic systems.
Threaded clamps or sleeves for field assembly/disassembly. Used in low-pressure lines, coolant hoses, and field-service applications.
Ferrule + screw-clamp design for vacuum, water, steam, and chemicals. Common in food, beverage, and chemical processing.
Tool-free connection — push on and done. Ideal for compressed air, lubrication, and low-pressure lines in workshops and maintenance.
316 stainless steel and virgin PTFE for aggressive fluids, pharmaceuticals, and semiconductors. FDA / USP Class VI certificates available.
DIN 2353, JIC 37°, SAE J518, and ORFS configurations for 200–420 bar. Essential for heavy machinery, agriculture, and offshore platforms.
DA Fluid hose fittings serve every sector of heavy machinery and industrial process:
Choose the material based on fluid, pressure, temperature, and environment:
| Material | Pressure Range | Temperature | Typical Applications |
|---|---|---|---|
| Carbon Steel (Zinc-Plated) | Up to 420 bar | -40°C to +120°C | General hydraulics, construction |
| Stainless Steel 304 | Up to 350 bar | -196°C to +400°C | Chemical, food-grade, steam |
| Stainless Steel 316L | Up to 350 bar | -196°C to +400°C | Marine, pharma, semiconductors |
| Brass (CW617N / CW614N) | Up to 60 bar | -20°C to +120°C | Water, gas, compressed air |
| PTFE / PFA (Lined) | Up to 200 bar | -60°C to +260°C | Aggressive chemicals, high-purity |
Need help specifying the right hose fitting for your application? Contact our engineering team for drawings, crimp data, and a formal quotation within 24 hours.

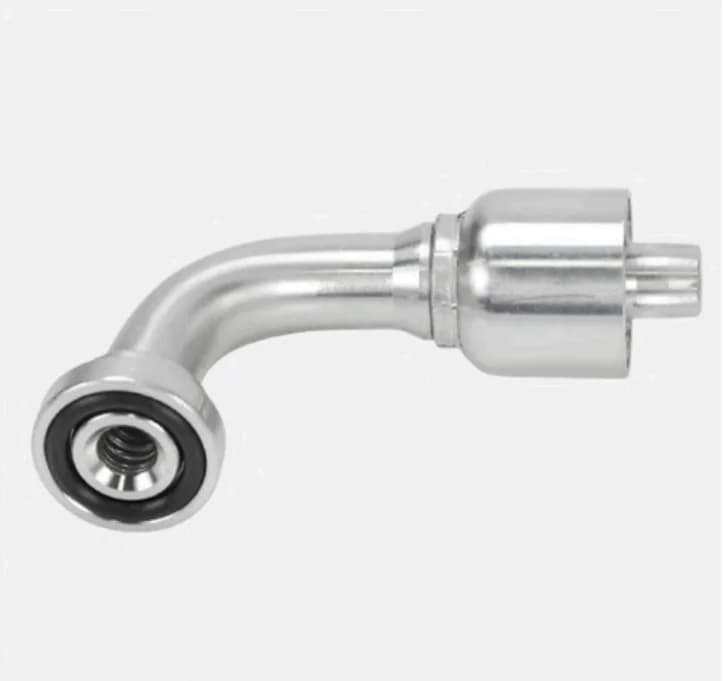

Advanced 87391RW/87691RW 90° SAE Code 61 (3000 PSI) / Code 62 (6000 PSI) flange one-piece hydraulic hose fitting. Engineered with a pre-crimped integrated ferrule design, a 90-degree bent elbow, precision-machined flange head, and elastomeric O-ring face seal to provide rapid assembly, robust face-clamping sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
Advanced 26791RW 90° JIC female 37° flare swivel one-piece hydraulic hose fitting. Engineered with a pre-crimped integrated ferrule design, a 90-degree bent elbow, robust swivel nut, and precision-machined 37-degree cone swivel seat to provide rapid assembly, reliable metal-to-metal sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
Advanced 24291RW 90° ORFS female flat face swivel one-piece hydraulic hose fitting. Engineered with a pre-crimped integrated ferrule design, a 90-degree bent elbow, robust swivel nut, and precision flat face swivel seat to provide rapid assembly, leak-free elastomeric face sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
Advanced 22691RW 90° BSPP female 60° cone swivel one-piece hydraulic hose fitting. Engineered with a pre-crimped integrated ferrule design, a 90-degree bent elbow, robust swivel nut, and precision-machined 60-degree cone swivel seat to provide rapid assembly, reliable metal-to-metal sealing, and superior blowout resistance in high-pressure industrial hydraulic
Advanced 20491RW/20591RW 90° Metric female 24° cone swivel with O-ring (DKOL / DKOS) one-piece hydraulic hose fitting. Engineered with a pre-crimped integrated ferrule design, a 90-degree bent elbow, robust swivel nut, and precision 24-degree universal cone with integrated elastomeric O-ring to provide rapid assembly, dual mechanical/elastomeric sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
Advanced 87311/87611RW straight SAE Code 61 (3000 PSI) / Code 62 (6000 PSI) flange one-piece hydraulic hose fitting. Engineered with a pre-crimped integrated ferrule design, precision-machined flange head, and elastomeric O-ring face seal to provide rapid assembly, robust face-clamping sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
Advanced 26711DRW straight JIC female 37° flare double hexagon swivel one-piece hydraulic hose fitting. Engineered with a pre-crimped integrated ferrule, dual-hex counter-holding body structure, and precision-machined 37-degree cone swivel seat to provide rapid assembly, effortless wrench gripping, reliable metal-to-metal sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
Advanced 26711RW straight JIC female 37° flare swivel one-piece hydraulic hose fitting. Engineered with a pre-crimped integrated ferrule design, robust swivel nut, and precision-machined 37-degree cone swivel seat to provide rapid assembly, reliable metal-to-metal sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
Advanced 24211RW straight ORFS female flat face swivel one-piece hydraulic hose fitting. Engineered with a pre-crimped integrated ferrule design, robust swivel nut, and precision ORFS flat face sealing interface to provide rapid assembly, leak-free elastomeric face sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
Advanced 22611RW straight BSPP female 60° cone swivel one-piece hydraulic hose fitting. Engineered with a pre-crimped integrated ferrule design, robust swivel nut, and precision-machined 60-degree cone swivel seat to provide rapid assembly, reliable metal-to-metal sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
Advanced 20411/20511RW straight Metric female 24° cone swivel with O-ring (DKOL / DKOS) one-piece hydraulic hose fitting. Engineered with a pre-crimped integrated ferrule design, robust swivel nut, and precision 24-degree universal cone with integrated elastomeric O-ring to provide rapid assembly, dual mechanical/elastomeric sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
Advanced 16711RW straight JIC male 74° cone / 37° flare one-piece hydraulic hose fitting. Engineered with a pre-crimped integrated ferrule design, robust hex body, and precision-machined 37-degree flare seating nose to provide rapid assembly, dependable metal-to-metal sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
Advanced 15611RW straight NPT male one-piece hydraulic hose fitting. Engineered with a pre-crimped integrated ferrule design, robust hex body, and precision-tapered NPT male threads to provide rapid assembly, dependable thread-wedging sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
Advanced 28691D 90° JIS metric female 60° cone double hexagon swivel hydraulic hose fitting. Engineered with a robust double-hex body structure, a 90-degree bent elbow, standard serrated tail, and precision-machined JIS metric 60-degree cone swivel seat to provide effortless wrench gripping, reliable metal-to-metal sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
Advanced 24291D 90° ORFS female flat face double hexagon swivel hydraulic hose fitting. Engineered with a robust double-hex body structure, a 90-degree bent elbow, standard serrated tail, and precision flat face swivel seat to provide effortless wrench gripping, leak-free elastomeric face sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
Advanced 22691D 90° BSPP female 60° cone double hexagon swivel hydraulic hose fitting. Engineered with a robust double-hex body structure, a 90-degree bent elbow, standard serrated tail, and precision-machined 60-degree cone swivel seat to provide effortless wrench gripping, reliable metal-to-metal sealing, and superior blowout resistance in high-pressure industrial hydraulic systems.
